ESA32N2400D21SS-34.625

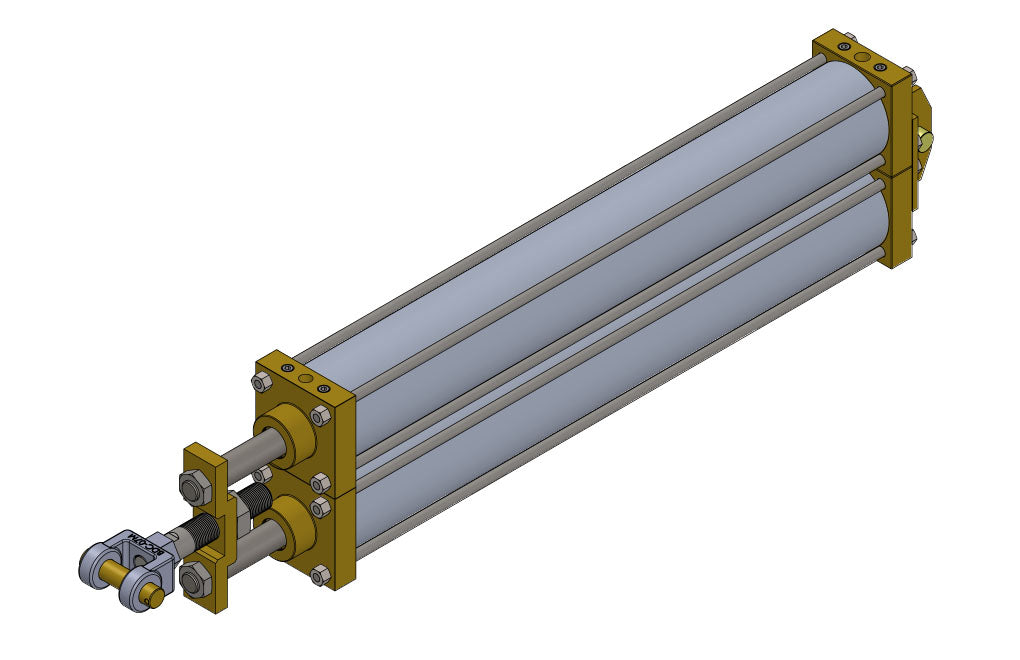

Two-Stack 3.1/4" Bore, 24" Stroke EconoSTACK™ Air Cylinder with rear clevis and 3/4" pin diameter (pin included). Our tailgate high lift cylinder comes with BDC-07M clevis, including 3/4" pin.
The cylinder includes 1/4" NPT ports at position 1 on both ends (see DWG).
36.750" pin-to-pin length retracted, with 1" adjustment possible.
Dueal 1" Nitrided rods for extra corrosion protection and dent resistance, machined with 3/4"-16 male rod thread on the primary rod.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
Our EconoSTACK™ design can stack up to three or more cylinders together. Email for more details if you want a design different from the one shown here. Custom models are possible.
Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, carbo-nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.

Typically used for tailgate (high lift) applications on dump trucks. Two Year Unconditional Warranty.

Click Here For PDF Drawing

Click Here For 3D Model (.step file)
