EconoMAX

EC8S330F1N097NX

EC8S330F1N097NX

Regular price $1,511.00
Regular price Sale price $1,511.00
Sale Sold out

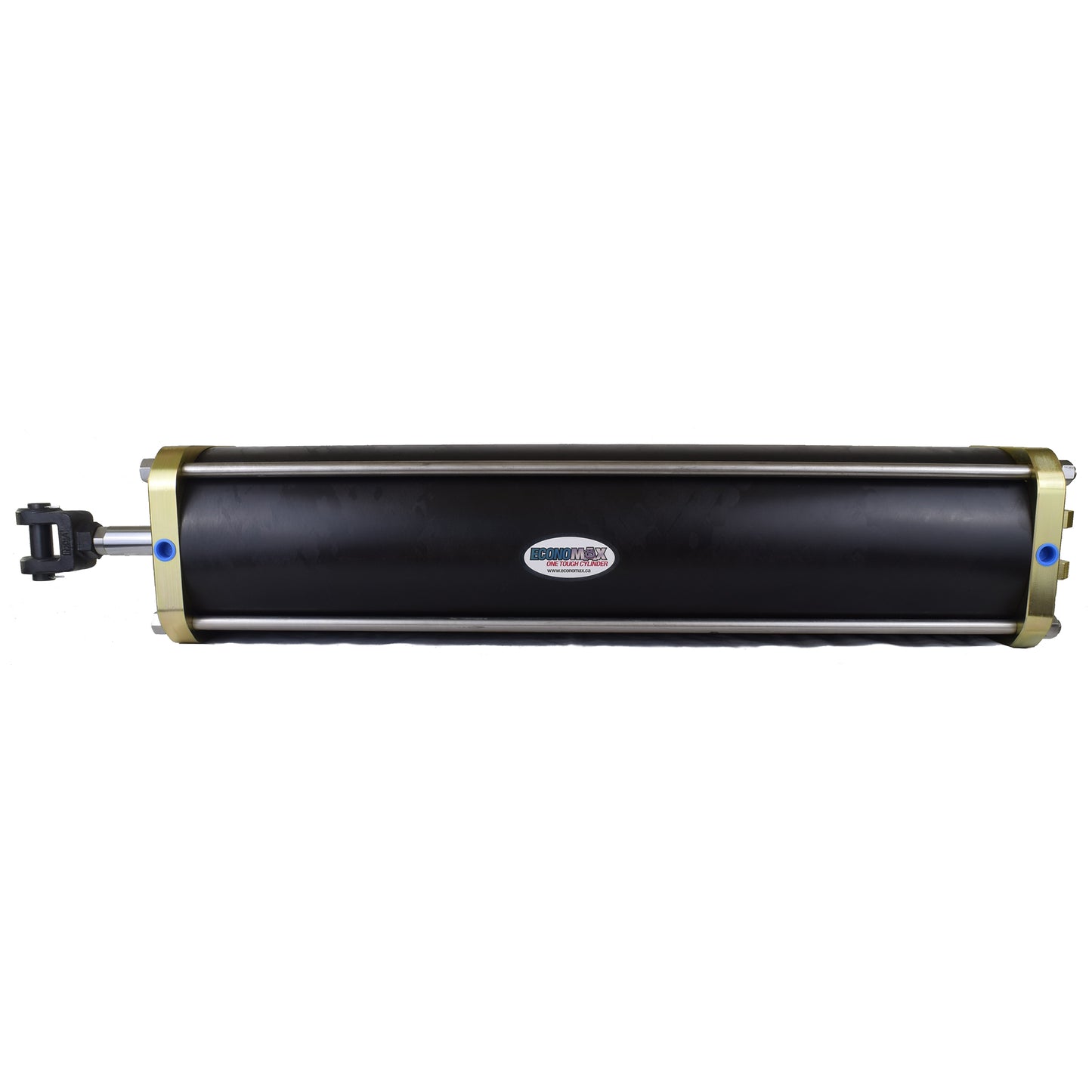

8" Bore, 33" Stroke (29" net stroke) Composite Barrel Belly/Side Dump Air Cylinder with rear clevis and 1" pin diameter (pin included). Our belly/side dump cylinder comes with BDC-10M clevis with 1" pin. The composite barrel provides dent protection.
This cylinder includes 1/2" NPT ports at position 1 on both ends (see DWG).
46.125" pin-to-pin length retracted. Includes 4" stop tube providing 29" net stroke.
1-3/8" Chromed rod for corrosion protection, machined with 1"-14 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.

Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, chromed rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.

Typically used for belly/side dump applications on dump trucks. Two Year Unconditional Warranty.

Note - this cylinder must ship on a pallet. Email for shipping rates.

Click Here For PDF Drawing

Click Here For 3D Model (.step file)
