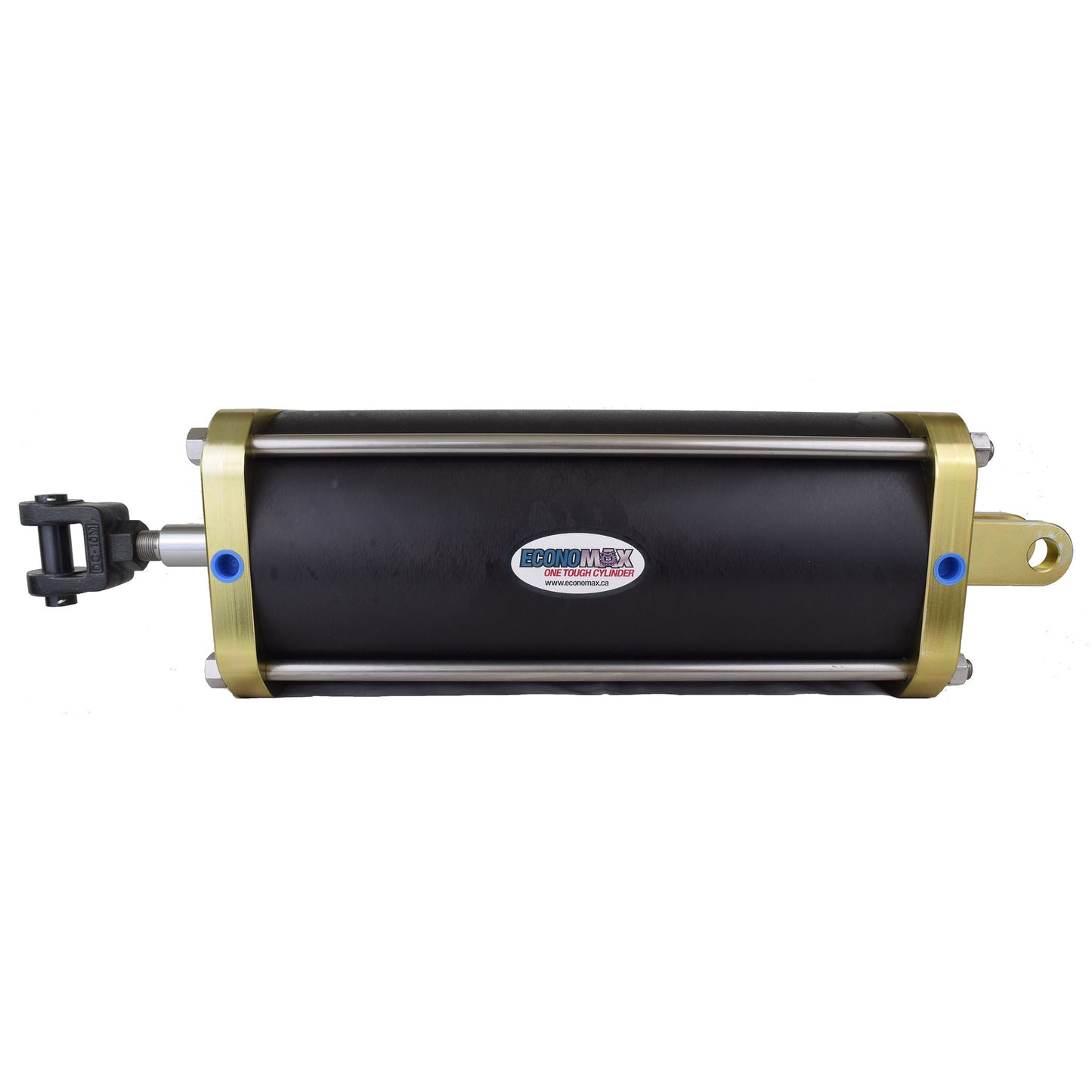

8" Bore, 17" Stroke Composite Barrel Belly/Side Dump Air Cylinder with rear clevis and 1.015" pin diameter (pin not included). Our belly/side dump cylinder comes with BDC-10M clevis with 25mm pin. The composite barrel provides dent protection.
The cylinder includes 1/2" NPT ports at position 2 on both ends (see DWG).
31.375" pin-to-pin length retracted.
1-3/8" Chromed rod for corrosion protection, machined with 1"-14 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.

Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, chromed rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.

Typically used for belly/side dump applications on dump trucks. Two Year Unconditional Warranty.

Note - this cylinder must ship on a pallet. Email for shipping rates.

Click Here For PDF Drawing

Click Here For 3D Model (.step file)
