EconoMAX

EC5S160F2N096NX

EC5S160F2N096NX

Regular price $1,173.78
Regular price Sale price $1,173.78
Sale Sold out

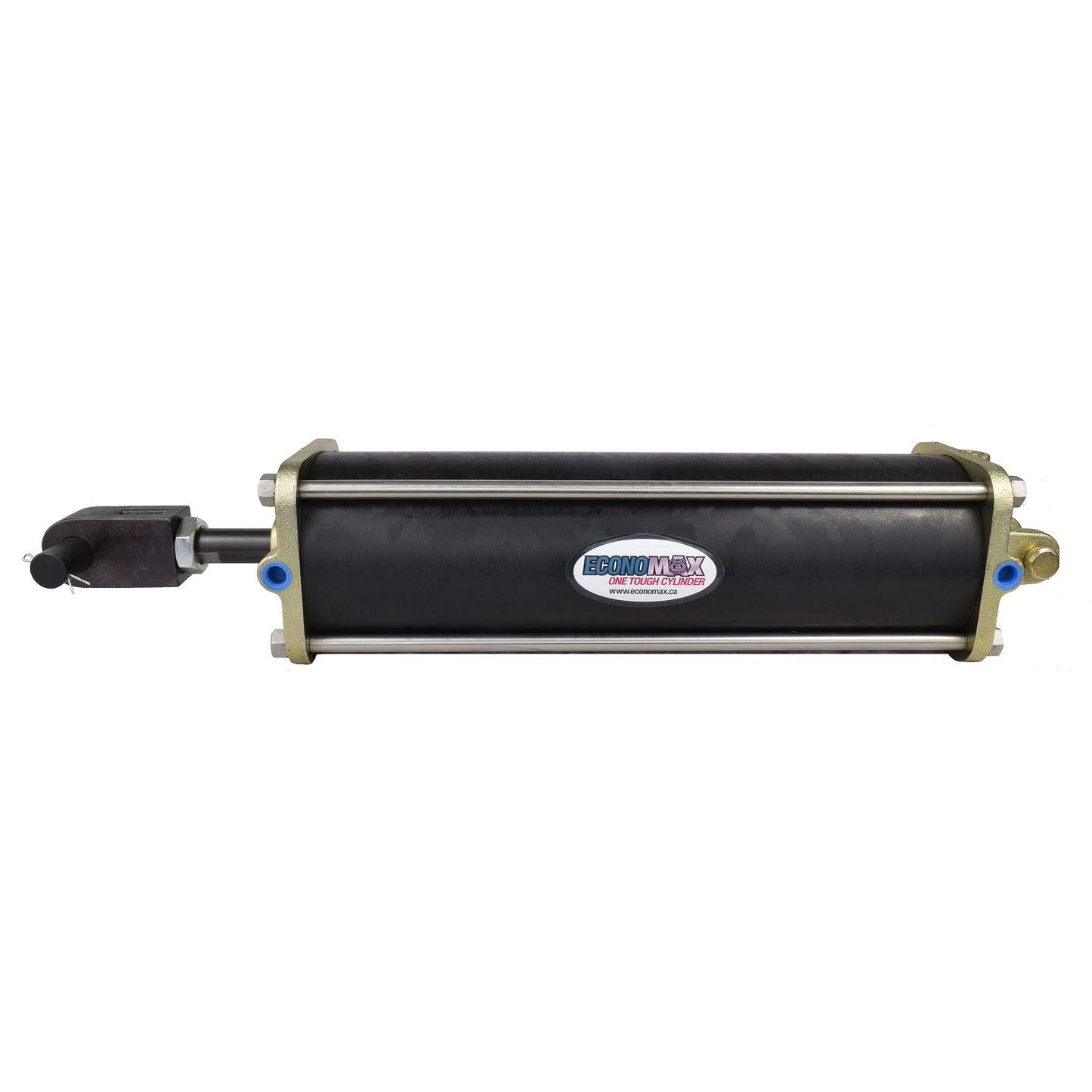

5" Bore, 16" Stroke Composite Barrel Tarp Pull Air Cylinder with rear clevis and 3/4" pin diameter (pin included). Our tailgate latch cylinder comes with jam nut, BDE-10 rod eye, including 1" pin. The composite barrel provides dent protection.
The cylinder includes 3/8" NPT ports at position 2 on both ends (see DWG).
26.75" pin-to-pin length retracted (minor adjustment with jam nut).
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 1"-14 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.

Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, carbo-nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.

Typically used for air tarp applications on dump trucks. Two Year Unconditional Warranty.

Click Here For PDF Drawing

Click Here For 3D Model (.step file)
