EconoMAX
EA7S080A1N111NS-13.32
EA7S080A1N111NS-13.32
Regular price
$377.71
Regular price
Sale price
$377.71
Unit price
/
per
Couldn't load pickup availability

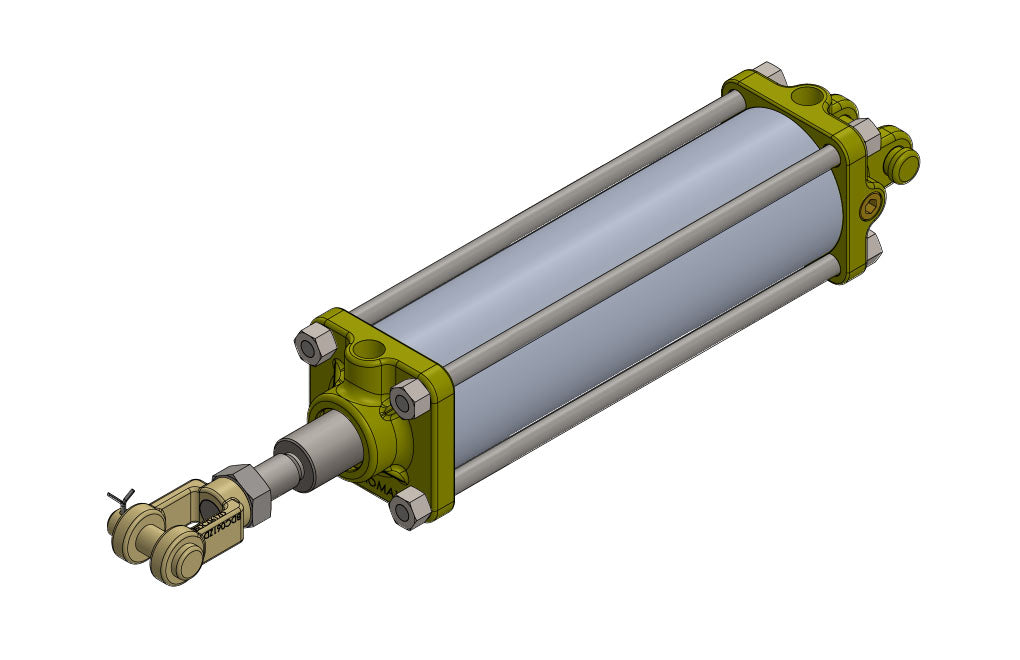

2-1/2" Bore, 8" Stroke Tailgate Latch Air Cylinder with rear clevis and 1/2" pin diameter (pin included). Our tailgate latch cylinder comes with BDC-061/ZD clevis, including 1/2" pin.
The cylinder includes 1/4" NPT ports at position 1 on both ends (see DWG).
16.52" pin-to-pin length retracted (with slight adjustment).
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 5/8"-18 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
The cylinder includes 1/4" NPT ports at position 1 on both ends (see DWG).
16.52" pin-to-pin length retracted (with slight adjustment).
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 5/8"-18 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, carbo-nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.
Typically used for tailgate latch (locking) applications on dump trucks. Two Year Unconditional Warranty.
Click Here for 3D Model (.step file)
