EconoMAX
EA5S140D2N092NS
EA5S140D2N092NS
Regular price
$813.82
Regular price
Sale price
$813.82
Unit price
/
per
Couldn't load pickup availability

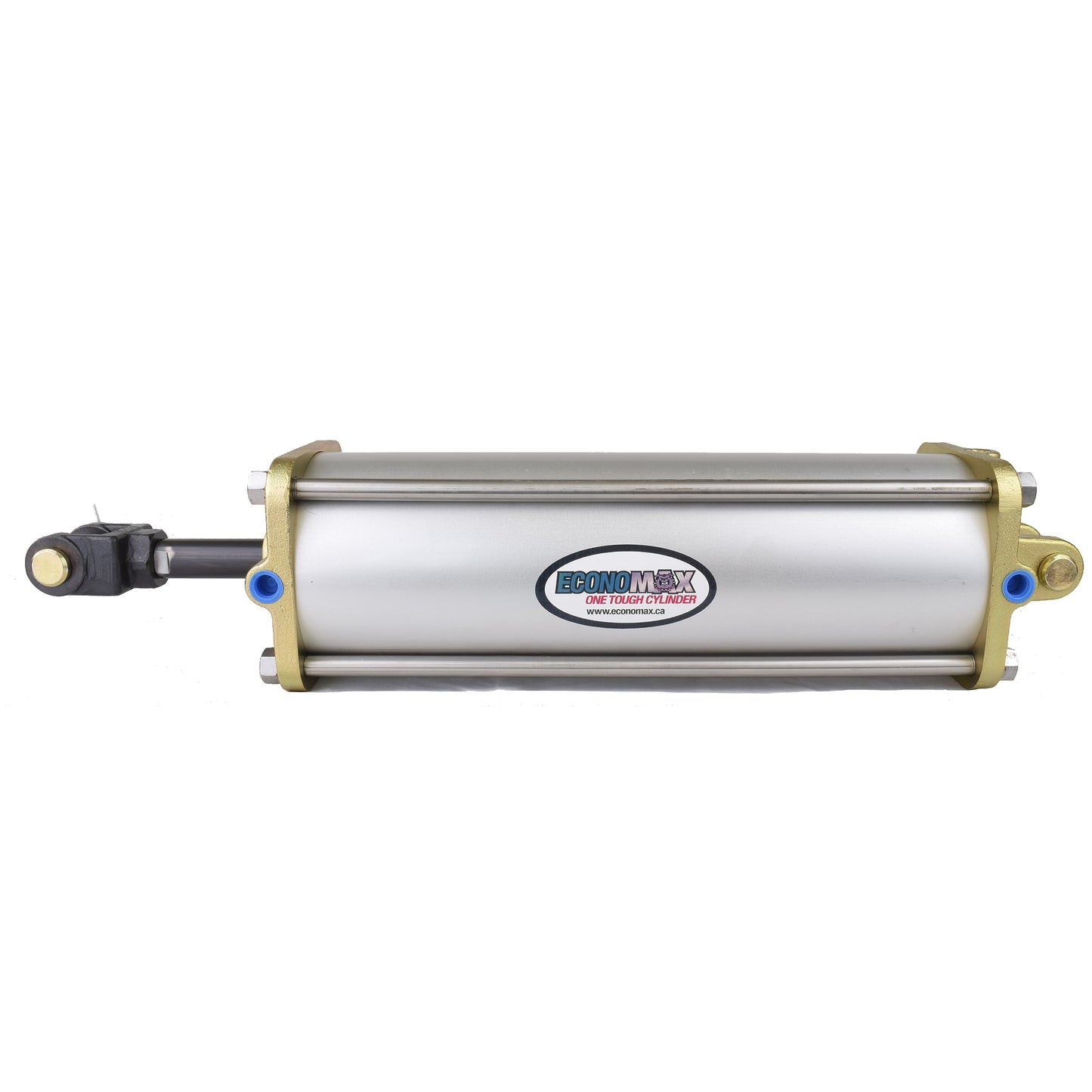

5" Bore, 14" Stroke Tarp Pull Air Cylinder with rear clevis and 3/4" pin diameter (pin included). Our air tarp cylinder comes with BDC-07M clevis including 3/4" pin.
This cylinder includes 3/8" NPT ports at position 2 on both ends (see DWG).
24.0" pin-to-pin length retracted.
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
This cylinder includes 3/8" NPT ports at position 2 on both ends (see DWG).
24.0" pin-to-pin length retracted.
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, carbo-nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.
Typically used for air tarp applications on dump trucks. Two Year Unconditional Warranty.
Click Here For 3D Model (.step file)
