Regular price $590.00
Regular price Sale price $590.00
Sale Sold out

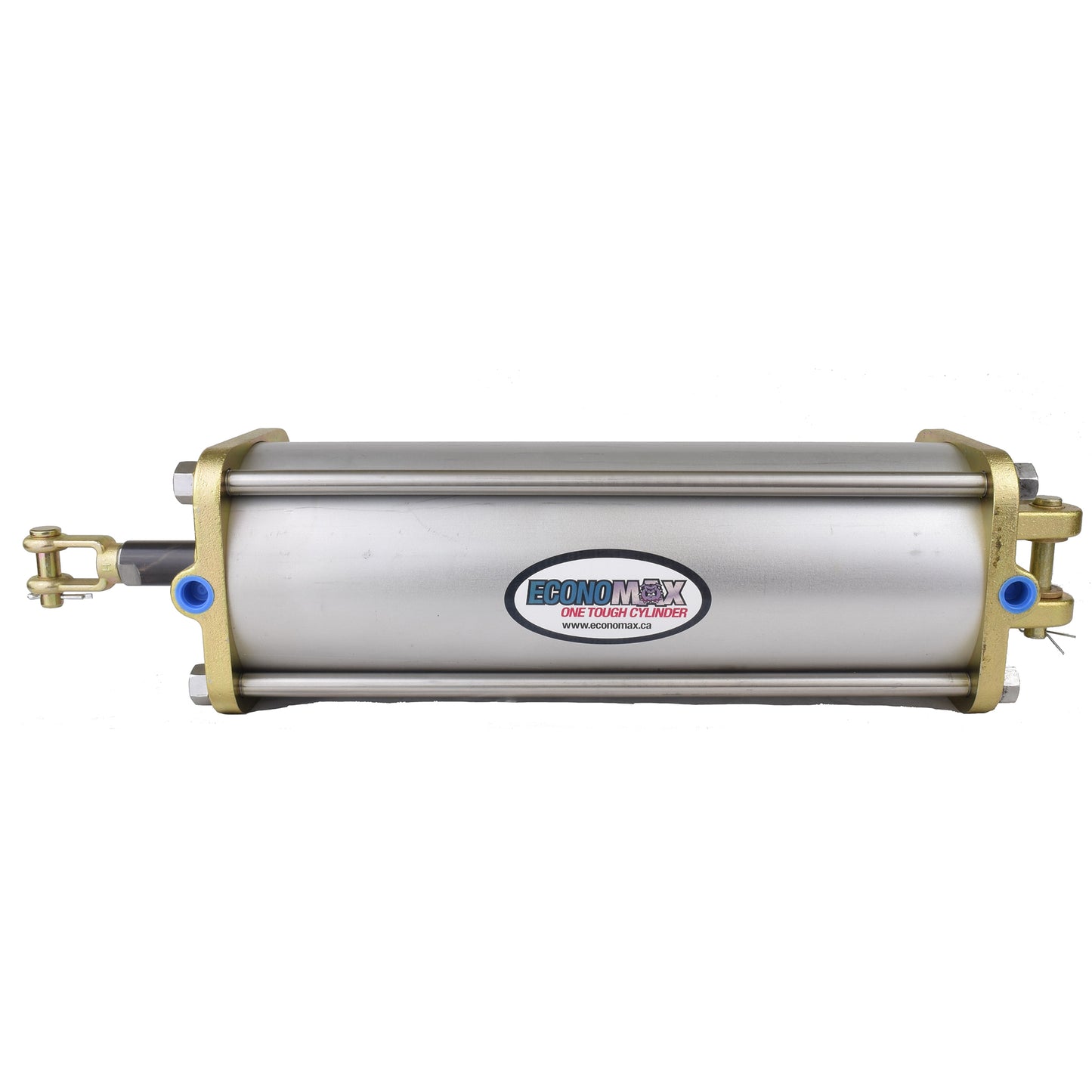

5" Bore, 13.25" Stroke Tarp Pull Air Cylinder with rear clevis and 3/4" pin diameter (pin included). Our air tarp cylinder comes with BDC-061/ZD rod clevis, including 1/2" pin.
The cylinder includes 3/8" NPT ports at position 1 on both ends (see DWG).
21.875" pin-to-pin length retracted.
1" Nitrided rod for superior corrosion protection and dent resistance, machined with 5/8"-18 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.

Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.

Typically used for air tarp applications on dump trucks. Two Year Unconditional Warranty.

Click Here For PDF Drawing

Click Here For 3D Model (.step file)
