EconoMAX
EA4S100D2N108NS
EA4S100D2N108NS
Regular price
$534.90
Regular price
Sale price
$534.90
Unit price
/
per
Couldn't load pickup availability

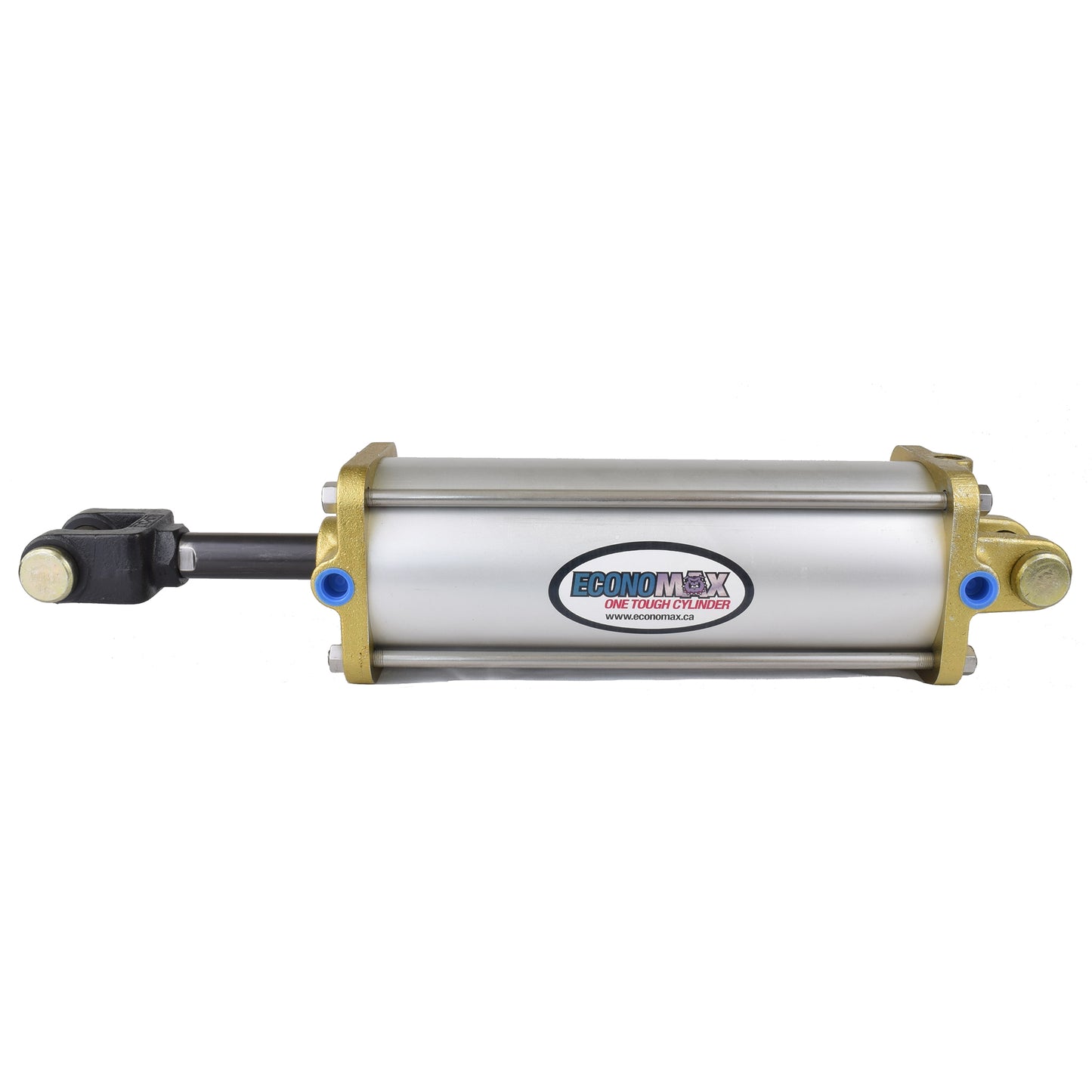

4" Bore, 10" Stroke Tailgate Latch Air Cylinder with rear clevis and 1" pin diameter (pin included). Our tailgate locking cylinder comes with BDC-07/1 rod clevis, including 1" pin.
The cylinder includes 3/8" NPT ports at position 2 on both ends (see DWG).
20.25" pin-to-pin length retracted.
1" Nitrided rod for superior corrosion protection and dent resistance, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
The cylinder includes 3/8" NPT ports at position 2 on both ends (see DWG).
20.25" pin-to-pin length retracted.
1" Nitrided rod for superior corrosion protection and dent resistance, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.
Typically used for tailgate latch applications on dump trucks. Two Year Unconditional Warranty.
Click Here For 3D Model (.step file)
