EconoMAX
EA4C140D1N093NS
EA4C140D1N093NS
Regular price
$583.38
Regular price
Sale price
$583.38
Unit price
/
per
Couldn't load pickup availability

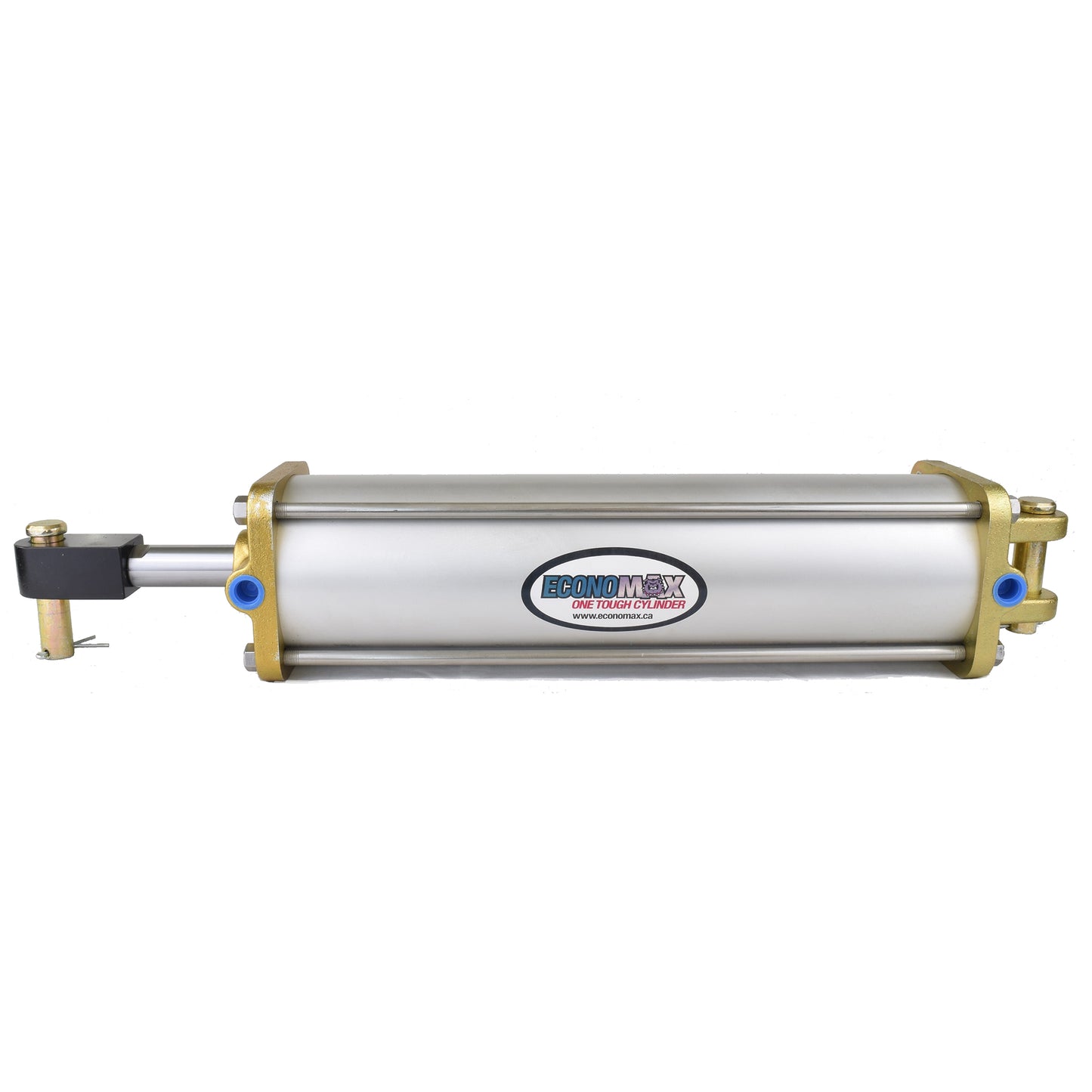

4" Bore, 14" Stroke Tarp Pull Air Cylinder with rear clevis and 3/4" pin diameter (pin included). Our air tarp cylinder comes with BDE-07 rod eye, including 3/4" pin.
The cylinder includes 3/8" NPT ports at position 1 on both ends (see DWG).
23.563" pin-to-pin length retracted.
1" Stelmi chromed rod for superior corrosion protection, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
The cylinder includes 3/8" NPT ports at position 1 on both ends (see DWG).
23.563" pin-to-pin length retracted.
1" Stelmi chromed rod for superior corrosion protection, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, Stelmi chromed rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.
Typically used for air tarp applications on dump trucks. Two Year Unconditional Warranty.
Click Here For 3D Model (.step file)
