EconoMAX
EA3S260A1N09NNS
EA3S260A1N09NNS
Regular price
$610.70
Regular price
Sale price
$610.70
Unit price
/
per
Couldn't load pickup availability

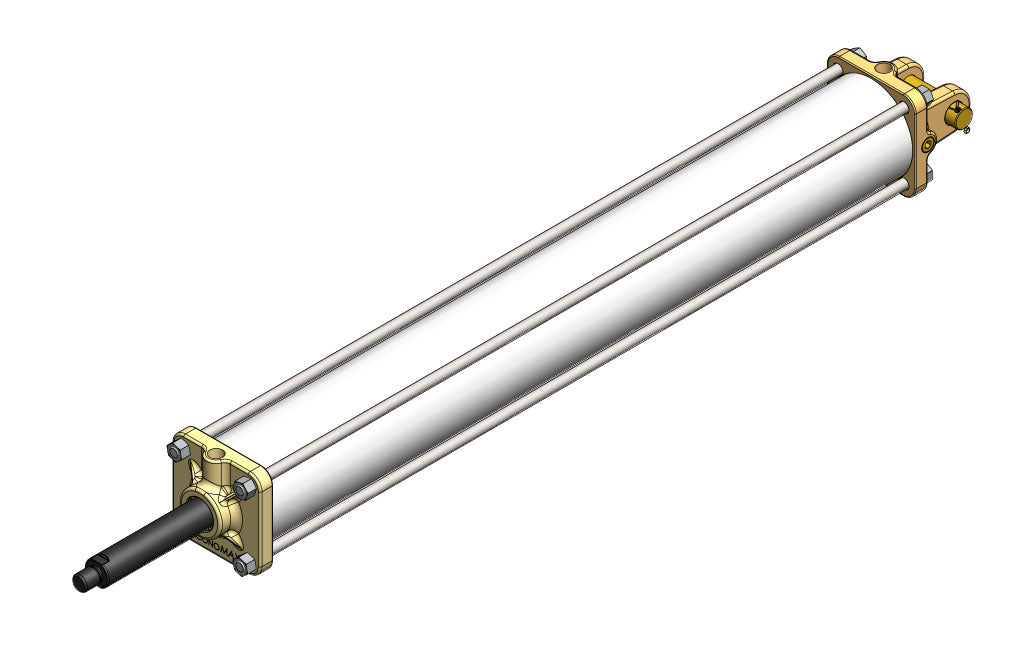

3.1/4" Bore, 26" Stroke Tarp Pull or High Lift Air Cylinder with rear clevis and 3/4" pin diameter (pin included).
This cylinder includes 1/4" NPT ports at position 1 on both ends (see DWG).
35.125" pin-to-shoulder length retracted.
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 5/8"-18 male rod thread 3/4" long with no rod attachment.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
This cylinder includes 1/4" NPT ports at position 1 on both ends (see DWG).
35.125" pin-to-shoulder length retracted.
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 5/8"-18 male rod thread 3/4" long with no rod attachment.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, carbo-nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.
Typically used for air tarp and high lift applications on dump trucks. Two Year Unconditional Warranty.
Click Here for 3D Model (.step file)
