EconoMAX
EA3S080D1N108NS
EA3S080D1N108NS
Regular price
$436.40
Regular price
Sale price
$436.40
Unit price
/
per
Couldn't load pickup availability

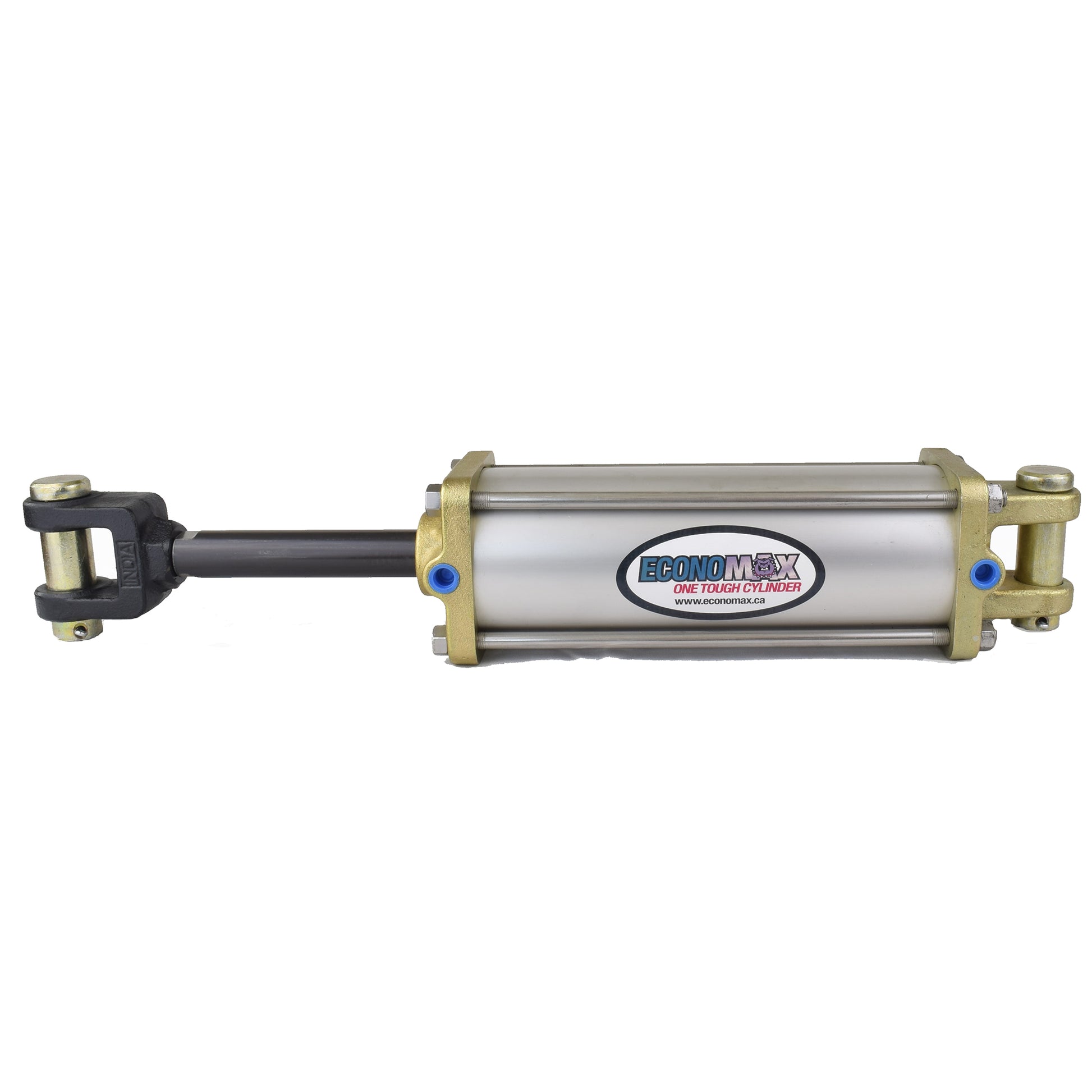

3.1/4" Bore, 8" Stroke Tailgate Latch Air Cylinder with rear clevis and 1" pin diameter (pin included). Our tailgate locking cylinder comes with BDC-07/1 clevis, including 1" pin.
This cylinder includes 1/4" NPT ports at position 1 on both ends (see DWG).
20.25" pin-to-pin length retracted.
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
This cylinder includes 1/4" NPT ports at position 1 on both ends (see DWG).
20.25" pin-to-pin length retracted.
1" Nitrided rod for extra corrosion protection and dent resistance, machined with 3/4"-16 male rod thread.
All EconoMAX® air cylinders are Made in Canada to suit the most extreme weather conditions.
Pre-lubricated for longer life, 100% tested prior to shipment, repairable, corrosion resistant, carbo-nitrided rod, bronze bushing, stainless tie rods & nuts. Rated for 250 PSI. Rated for -65°F to 220°F.
Typically used for locking tailgate latch (locking) applications on dump trucks. Two Year Unconditional Warranty.
Click Here For 3D Model (.step file)
